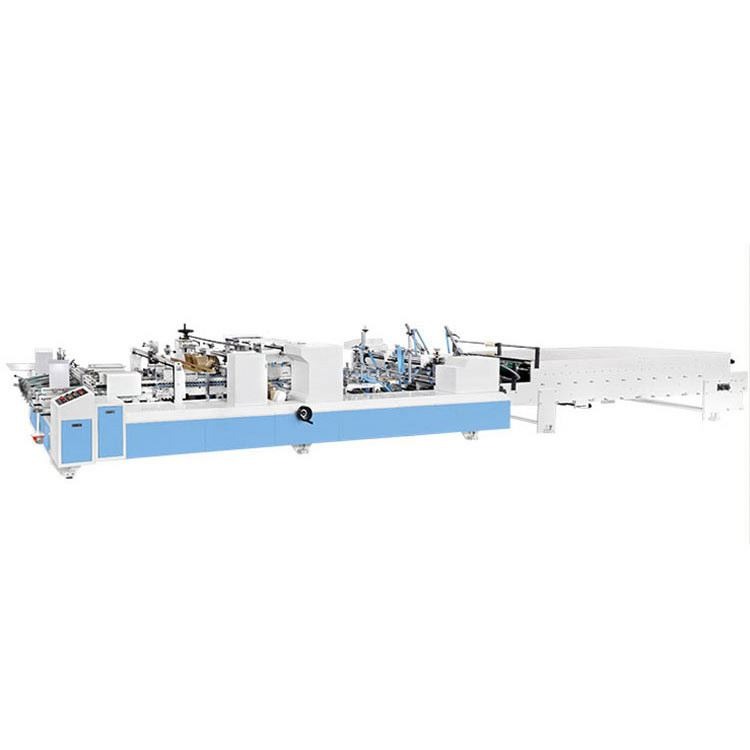

Other Full Automatic 4 / 6 Corner Box Flexo File Gluer

1.0 Sets
MOQ
Other Full Automatic 4 / 6 Corner Box Flexo File Gluer
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 Year
Type: Other, Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Farms, Restaurant, Food Shop, Printing Shops, Other
Showroom Location: Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Peru, Indonesia, Pakistan, Morocco, Sri Lanka, Romania, Bangladesh, South Africa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Bearing
Condition: New
Application: Other
Packaging Type: Other
Packaging Material: Metal, Wood
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 220V
Power: 20.5kw
Weight: 15.8 KG
Dimension(L*W*H): 15800*2350*1500mm
Key Selling Points: High-accuracy
After-sales Service Provided: Engineers available to service machinery overseas
After Warranty Service: Video technical support, Online support
Local Service Location: Egypt, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand
Сертификация: CE ISO
Основная информация
Сертификация: CE ISO
Оплата и доставка Условия
Packaging Details: Wood Package
Supply Ability: 999 Set/Sets per Day
Характер продукции
Specifications

Full-auto envelope pocket Pre-folder gluer crash lock bottom machine

1450PC Folding Gluing Machine

Characteristics:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor to keep the feeding stable.
(for higher configuration use drilled suction belt)

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

Our product advantage:

Modular design allows different configurations, to meet customer's needs.

Wide range of accessories that allows to run thousands of designs.

Technical Parameters:

Description Carsh-lock Bottom Box with Pre-Fold
Suitable material Card board,E flute corrugated board
Feeding method Automatic continuous feeding
Max mechanical speed 260m/min
Overall dimension 20000*2350*1650mm
Weight 14T
Power consumption 20.5KW
Main motor Teco Taiwan
Inverter Siemens
Timing belt and pulley Optibelt German
Bearing NSK
Main axis Taiwan Chrome Plated Steel Bar
Wall thickness 20mm tempered
Feeding belt Habasit switcherland
Plain belt Nitta Japan
Low voltage apparatus Omron
Fasten bolts Level 8.9 tanwan
Characteristics

ZH-1450PC

Box type

Straightline box

Double sides box

Crash-lock bottom box

4-corner box

6-corner box

A

MAX

1500

1100

1450

1300

1400

MIN

300

350

350

400

400

B

MAX

1500

1300

1400

1100

1100

MIN

80

200

150

250

250

C

MAX

730

1200

720

1000

1000

MIN

140

150

170

200

200

D

MAX

350

250

350

300

300

MIN

20

10

30

30

30

1. Why your machine similar with other supplier?

We design machines by ourselves with advanced technology. Apperance just a part machine, service and quality is more important than it.

2. What kind of machines can you supply to customer?

We could offer various kinds of machines and whole production line

Our Advantages

1.We have professional technical team,have many patent technology.

We can provide customized packaging solution.show us requirement,it's ok.

2.We have professional after-sale team, can provide services to customers at any time.

After sales director:0086-13906879103

Group Director:0086-13955806881

3.We have export to many European and American countries,Germany,USA,Canada,Portugal...Argentina and so on.

Warranty Service:

Machines are new (or unused) and the gurantee period will be given thirteen months from shipment date. During this period, the seller will offer free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishading and consumable parts are not covered by any warranty.
