Характеристики

Warranty: 1 Year

Type: Other

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Construction worksÂ

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Motor, Pump

Condition: New

Application: Food, Beverage, Commodity, Medical, Machinery & Hardware

Packaging Type: Belt, corrugated carton box

Packaging Material: Paper

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220V,380V,415V,440V

Power: 2.3KW

Weight: 2.2T

Dimension(L*W*H): 5500mm*1800mm*2000mm

Key Selling Points: Automatic

Product name: Automatic folder gluing machine

Сертификация: CE,ICO, CE,ICO

Function: Manual Fold

Machine type: Electric

Material: Stainless

Item: Easy

Raw material: corrugated cordboard

Place of Origin:: Hebei Cangzhou

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: Egypt, India, Russia

After-sales Service Provided: Online support

Основная информация

Сертификация: CE,ICO, CE,ICO

Оплата и доставка Условия

Supply Ability: 1000 Set/Sets per Year

Характер продукции

Product Description

Product Name	Semi-automatic pressing type box gluer machine BZX2800
weight	2T
Power Required	2.3KW
Voltage	380V,220V,415V,440V
Certification	CE/ ISO9001
max size of cardboard	2800mm
min size of cordboard	340mm
Machine speed	40pcs/min
veerall size of machine	5500x1800x2000mm
Main motor	China Taiwan Dalta

Technical Parameters
Model	AFG1500	AFG1800	AFG2000
Voltage	According customer need	According customer need	According customer need
Power	3.2KW	3.2KW	3.8KW
Hz	50/60hz	50/60hz	50/60hz
Weight	1.0tons	1.3tons	1.45tons
Overall size	2200x1900x1300mm	2200x2400x1300mm	2200x2650x1300mm
Max size of box	1500x1100mm	1800x1100mm	2000x1100mm
Min size of box	200*260mm	200*260mm	200*260mm

Technical Parameters
model	BZX2800
Max paperboard size	2800*1300mm
Min paperboard size	340*680mm
Height of feeder	Automatic lifting
Power	2.2kw
Machine overall size	550018002000mm
Machine weight	1500kg
Machine speed	60pcs/min

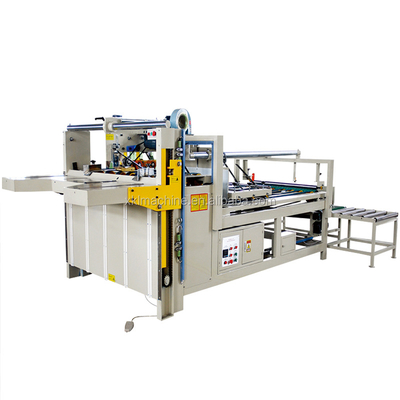

Semi-automatic folder gluer machine/carton box folding gluing machine

The Usage and Features:
Semi-automatic press-fit stick me is based on user needs the latest development of small orders. Its small footprint, easy to
operate without experience, ideal for small batch production and variety of replacement. Try a wide range of ordinary cardboard,
box-shaped molded bonded single page, but also to make the hook bottom carton after carton and earth cover the installation of
automatic spray devices. Save glue, glue the amount is equivalent to manual gluing 1/3 provincial labor, the maximum speed of 56 m
machine / min, the efficiency is 3-4 times manually operated. Bonding firm, tidy no excess glue, patent-headed sander can be very
good to be polished to remove the sticky mouth UV light plastic film or coating layer. Improve adhesion of glue, lifting carton
plant in some seasons easy to open plastic cartons problems. The unit is manually folding, improve work efficiency while also
applies to automatic indentation bad machining errors, special shaped windows that open and paper products.
