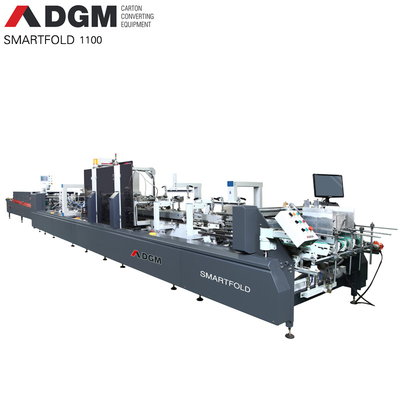

China Factory Automatic Carton Box Folder And Corrugated Gluer SMARTFOLD 1100 Machine

1 Set
MOQ
$99,000.00(>=1 Sets)
цена
China Factory Automatic Carton Box Folder And Corrugated Gluer SMARTFOLD 1100 Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Printing Shops
Showroom Location: United States, Italy, India, Mexico, Russia, Thailand, Algeria, South Africa
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor, Gear, Pump
Condition: New
Type: FOLDER GLURES
Automatic Grade: Automatic
Voltage: 380V
Dimension(L*W*H): 15.51*1.66*1.4 m
Weight: 7.8 Ton
Warranty: 1 Year
Key Selling Points: Automatic
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Speed: max. 400 m/min
Inching speed: 20 m/min
Thickness of folded box: max. 20 mm
Blank width: 1100 mm
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: United States, Italy, Philippines, India, Mexico, Russia, Spain, Thailand, Australia, South Korea, Algeria, Ukraine
Сертификация: CE
Основная информация
Сертификация: CE
Оплата и доставка Условия
Packaging Details: Sea packing, shockproof, suitable for long-distance road and vessel transportation and various types of weather conditions.
Supply Ability: 60 Set/Sets per Month
Характер продукции

Product Description
Product Description
High speed automatic folder gluer
SMARTFOLD 1100 – PC
suitable for straight-line, crash-lock bottom & double wall boxes
SMARTFOLD 1100 – SL
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD 1100 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run
from small to large sized boxes, covering a wide range of industries. It is flexible to operate and it comes with a state of the
art technology and electronics. The standard version includes the accessories for straight line and crash lock bottom boxes. It is
flexible and easy to operate.

1. Feeder section

* Independently motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Side feed gates fully adjustable to the width of the blank.
* 8 feeder belts.
* Two adjustable front feed knives.

2. Side register section

* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.

3. Pre-folding section

* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.

4. Crash lock bottom section

* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accessories for B-type lock bottom.

5. Lower gluing unit

* One lower (left side) gluing tank.
* Easy to remove and clean.
* Electronic upper gluing system by guns. (Optional)

6.  Folding & Closing section

* Smooth and accurate folding of 2nd and 4th creases.
* Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy duty compression rollers (optional).

7.  Trombone section

* Upper and lower drive mechanism for lengthwise adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.

8. Press section

* Independent and motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5 meters total length with 3.5 meters effective pressure length.
* Pneumatic pressure adjustment.
9. Servo-motor of back folding device
* Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

Material

Material


Specification

Specification

BOX
BOX
SCHEME
SCHEME
