Характеристики

Warranty: 1 Year

Type: Other

Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product

Warranty of core components: 1 Year

Core Components: PLC, Bearing, Motor, Gear

Condition: New

Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type: Cartons

Packaging Material: Paper

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220V/380V

Power: 10KW

Weight: 3000 KG

Dimension(L*W*H): 5500x2200x2000mm

Key Selling Points: Long Service Life

Product name: Automatic Clapboard Partition Assembler Machine

Host belt speed: 15-30 m/min

Longitudinal clapboard feeding track No.: 6

clapboard feeding track No.: 1~12

Working speed: 40-60( groups / min )

Clapboard thickness: 1.5~7mm

Assembly length: 120 - 500 mm

Assembly width: 120 - 450 mm

Assembly height: 70 - 300 mm

Function: clapboard packaging

Основная информация

Оплата и доставка Условия

Packaging Details: Case

Supply Ability: 800 Piece/Pieces per Year

Характер продукции

Products Description

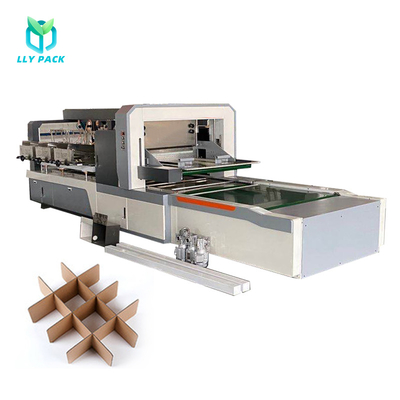

Clapboard Partition Assembler Machine

⭐Replace the traditional manual operation mode, reduce labor costs, high efficiency and energy saving
⭐Touch screen configuration, simple and intuitive operation
⭐All parts are made of high-quality raw materials, processed by precision equipment, and have a long service life
⭐Scientific and advanced mechanical structure, easy to adjust, short time, easy to use and easy to maintain
⭐Spare parts are selected from high-quality brand products, and the quality is guaranteed

Application

This machine is easy to operate, stable in operation, and high efficient in production. It is used in grid cardboard packaging for beverages, wines, fruits, medicines and electronic products. It is an ideal equipment for various carton industries.

Power supply	380V/50Hz	3 phases - 4 lines
Power	10 KW	Not including the air compressor
Host belt speed	15-30 m/min
Clapboard combining form	*3(1~N )**	ln double working station
		Longitudinal clapboard feeding track number	6
		Horizontal clapboard feeding track number	1~12
Clapboard size	(Length)L=120~500mm	Clapboard thickness 1.5~7mm
		(Height) H=70-250mm
		(Width)W=120~450mm（double station )	(Width) W=120~900mm(single station )
		(Lattice spacing)C=50~150mm
		(Lattice spacing) D=30~150mm
Working speed	40-60( groups / min )	Working speed is connected with clapboard size and clapboard combining form.
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station . Air compressor or air compression station requirement : 6kgf/cm2 . For the 'special type of clapboard , we can customize the machine as client's wish .

Structural Features

1, Suitable for automatic insertion of various carton partitions and blocks
2,Vertical vacuum sucker sucks and feeds paper, and horizontal servo feeds paper, which is accurate and fast
3,Vertically and horizontally feed the paper at the same time
4,Vertical ESC lifting
5,Transverse paper feeding table adopts electric adjustment (electric type)
6,Electric adjustment of the horizontal grid height (electric type)
7,Double-station paper output
8,Touch screen input control, electric adjustment of grid parameters.
9,The comprehensive use of air control and electric control to ensure the advanced equipment control
10,The compressed air storage tank is used for centralized air supply, the air supply pressure is stable, and the air source is sufficient. Each gas-using equipment takes gas from the main gas pipe and is independently controlled without any influence on each other

11,Equipped with fault detection device, the machine will stop automatically when jammed

♥For videos and catalogs,please feel free to contact us♥

Company Profile

FAQ

1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in National High-tech Industrial Zone, Sanshui, Foshan City, Guangdong Province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set.
With over 3500+ sucessful installation experience in the last 22 years, we provide tailor-made solutions as per customer's demand.
3. Q: How does your factory do regarding quality controlling?
1). 22 Years of Specialization in Corrugated Industry Solutions that delight
2). Over 3500+ successful installation corrugated cardboard production line
3). Quick Responsive Professional Pre-sales Service
4). Top machinery R&D team
5). A state-of-the art factory with full set up of manufacturing facilities, including 4 Sets of advanced 5-face High Precision
CNC Center
6). Strict inspection before delivery
7). All-round after-sales Service System
8). Fuli is the unique company who drafts the latest version of national industry standard for corrugated machines in China
4. Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, FB, Linkin, Wts, IG.
One year warranty period under normal use for machines.
