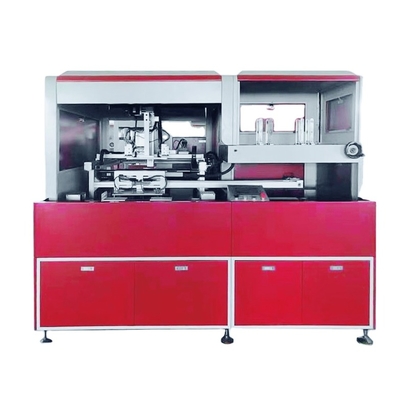

Automatic Hardboard Food Tray Forming Glue Sealing Machine for Box Making Products

1 set
MOQ
$80,900.00(1 - 4 sets) $80,800.00(5 - 9 sets) $80,600.00(>=10 sets)
цена
Automatic Hardboard Food Tray Forming Glue Sealing Machine for Box Making Products
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 Year
Type: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220V
Power: 22KW
Weight: 3500 KG
Dimension(L*W*H): 228*230*195
Key Selling Points: Automatic
Product name: Special HSC Five board Box Forming Making Gift Box Forming Machine
Function: Packaging
Usage: Grey board Making Gift Box
Name: Five Board Assembly Box Making Machine
Keyword: Cardboard Gift Box Making Machine
Packing material: Rigid Board
Machine name: Hsc-500
Material: Greyboard, Cardboard
Machine type: Packaging Machine
Packing speed: 25-35pcs/min
Основная информация
Оплата и доставка Условия
Packaging Details: Wood Box
Supply Ability: 10 Set/Sets per Week
Характер продукции
Product Overview
FEATURES AT A GLANCE
Factory Direct Commercial Grey Board Box Forming Machine
This is an advanced feature of HSC-300 Box assembly card board gift box making machine.
It's an unique and special product in the world, self-invented by Heng Shun Chang Technology Co., Ltd.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Type of Equipment
HSC-500
2
Power Supply
220V
3
Air Pressure
6Mpa
4
Max. Box Size
500*450*150mm
5
Min. Box Size
120*100*10mm
6
Working Speed
25-35pcs/min
Weight
350Kg
7
Machine Size
2280*2230*1950mm
8
Total Power
22KW
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
1. Q: Who we are?
A: We are Heng Shun Chang Technology Co., Ltd is a machinery manufacturer based in Guangdong, China. The company is established in
2017, have it’s own R&D team, and specialized in the manufacturing of packaging machines.

2. Q: Is it difficult to install the machine?
A: The work shop should prepare full facility such as power and air compressor. For the first installation, engineer will be sent
to set machine and do the machine training as long as manual instruction. For the further problems come out, we can provide video
instruction as well.

3. Q: What can you buy from Heng Shun Chang?
A: You can buy different type of packaging machines:
- Box Assembly Using Cold and Hot Glue Making Gift Box Machine, Automatic density board splicing bonding Machine Gift box
splicing bonding Machine,
- Four sides folding leather shell Machine Four sides wrapping leather Machine Paper shell Machine, Folding box folding forming
Machine,
- Fully Automatic Grey Plates Grey Board Slotting Machine,
- Upper and bottom Cover forming Machine,
- Paper Feeder gluing and pasting Machine,
- Automatic Book-type cover cardboard assembling machine,
- SMT Machine / Laminating machine for magnetic sheet and iron sheet

4. Q: What service we provide
A: Accepted Delivery Terms: EXW, FOB, CIF, CFR;
Accepted Payment Currency:CNY, EUR, USD, CAD, GBP;
Spoken Languages : Chinese,English, Arabic, French

5. Q: What’s the payment term?
A: FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)
