Factory Automatic Nylon Mesh Strainer Screen Gluing Machine Paint Filter Window Gluing Machinery

1 set
MOQ
Factory Automatic Nylon Mesh Strainer Screen Gluing Machine Paint Filter Window Gluing Machinery
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Manufacturing Plant, Food & Beverage Shops
Showroom Location: None
Condition: New
Product Type: Window Patching
Processing Type: Paper Box Machine
Voltage: 380V
Power: 5.5KW
Dimension(L*W*H): 4600*1500*1600mm
Weight: 1680 kg
Warranty: 1 Year
Production Capacity: 130 pcs/min
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Motor, Gearbox
Max paper size: 580*850mm
Min paper size: 100*100mm
Max Film: L320*W350mm
Min Film: L50*W20mm
Max Diameter Film Unwinding: 400mm
Основная информация
Оплата и доставка Условия
Packaging Details: wooden case
Supply Ability: 300 Set/Sets per Year
Характер продукции

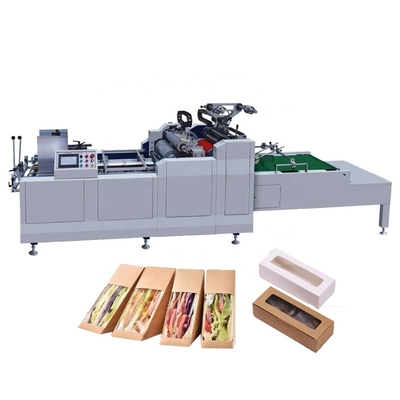

Windowing machine SY-650A
SY-650A automatic high-speed window-pasting machine is suitable for window-pasting of various types of window-opening paper boxes, such as tissue boxes, gift boxes, toy boxes, cosmetic boxes, etc. The equipment has the characteristics of high efficiency, accuracy, stability and easy operation, which can greatly improve the production efficiency and reduce the production cost. It can be used in a wide range, all kinds of special-shaped boxes can be quickly operated, reverse UV, nano UV, white cardboard, oil and water glazed kraft paper, corrugated paper are applicable. Technical parameters are as follows:
Max paper size
580*850mm
Min paper size
100*100mm
Max Film
L320*W350mm
Min Film
L50*W20mm
Paper weight
Kraft paper: 150-1200g/m2
White Cardboard: 230-1200g/m2
Corrugated Paper: ≤3mm
Quantity of Servo Motor
2 sets (1 set of paper feeding part; 1 set of film feeding part)
Quantity of Stepping Motor
2 sets (1 set of automatic paper delivery, 1 set of knife holder left and right)
Machine Size
4600*1500*1600mm
Power
380/415V 50/60Hz 5.5KW
Weight
1680kg

Operating interface

The setting of all parameters and the switch of functions are operated in the touch screen, and the operation panel is equipped with quick operation buttons of "click, start, emergency stop, speed regulation

Paper feeding section

Paper conveyor belt adopts Japanese nita brand and durable beef tendon belt, can be selected according to product demand,UV products more, can choose Japanese nita belt, to solve the problem of paper feeding is not smooth. Bottom belt vacuum adsorption paper feeding, servo motor driven, can be a variety of paper feeding mode switch.

Positioning Department

The chain guide adopts imported polymer material wear-resistant and mute, and the paper positioning adopts quartet push block and brush to increase the stability of high-speed running of paper.

Glue coating department

Special mechanical structure design through the sponge gluing method, glue quickly and evenly coated on the surface of the product, scraping effect is good.

film department

The film feeding adopts servo motor transmission and drum adsorption continuous paste, compared with the traditional intermittent paste has the advantages of fast fitting speed, high precision, low requirements for the film.

Paper receiving table

The paper receiving table adopts a separate stepping motor to control the operation of the belt, the spacing of the paper can be adjusted as a whole or in sections, and the multi-section speed operation. Can be continuous, pause, flexible use of points
